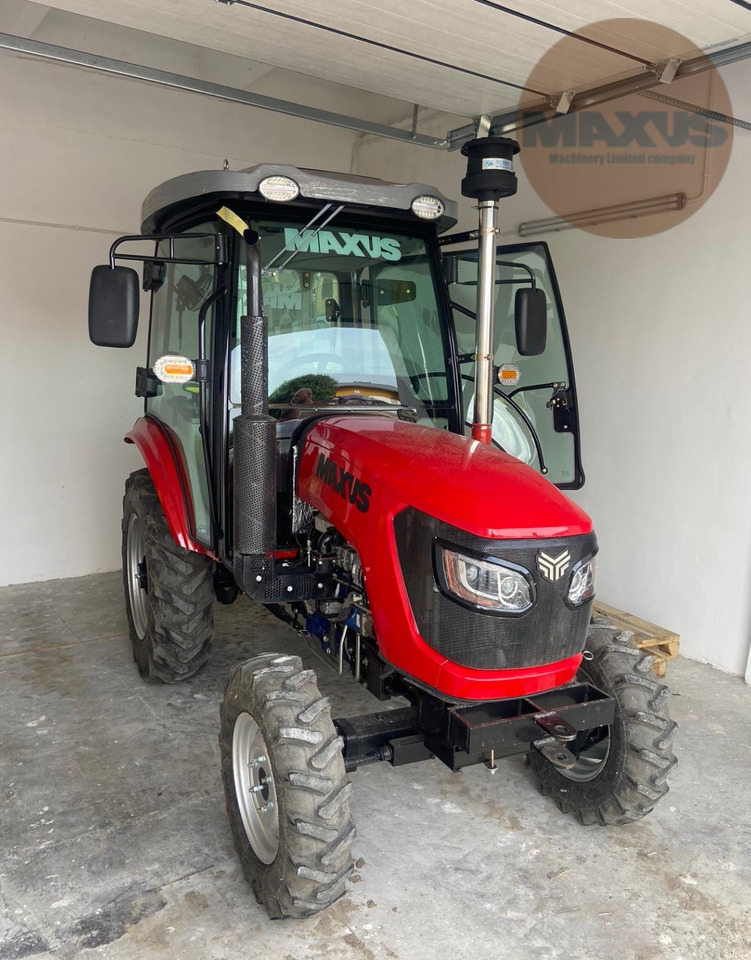

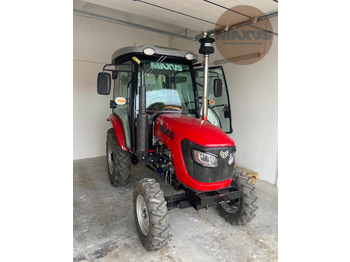

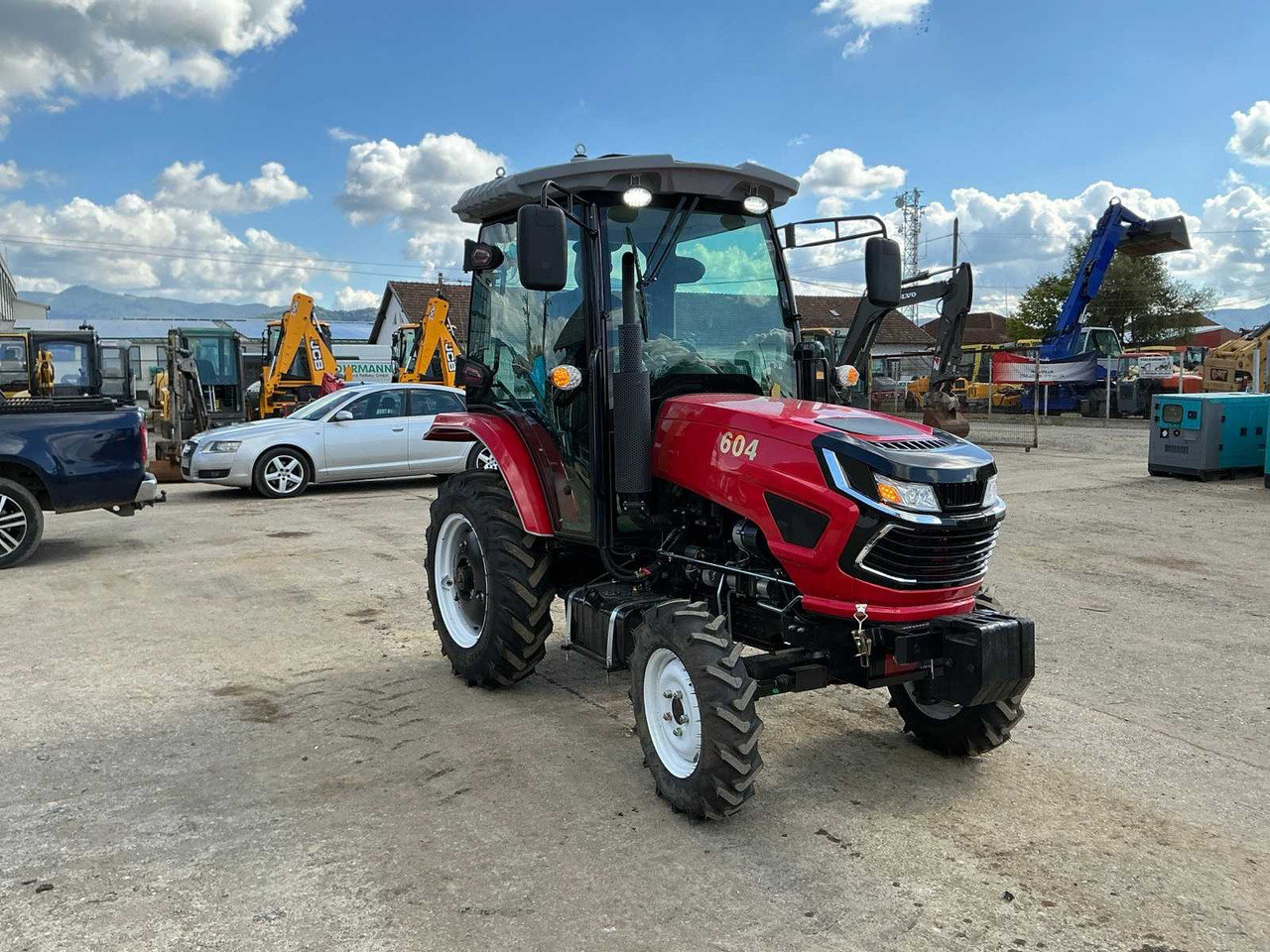

Novi Traktor maxus Tractor 50hp 4x4

Maxus Specification

Power (HP): 50

Type: Wheeled

Frame Type: Arch

Drive Type: 4WD

External Dimensions (L x W x H): 3595 x 1500 x 2330 mm (bar roller)

Wheelbase: 1970 mm

Common Track Size (Front/Rear): 1210/1180 mm

Track Size (Front/Rear) or Dimensions: 1210, 1310/1105-1430 mm

Minimum Ground Clearance and Position: 315 mm (bottom of the front axle)

Horizontal Distance from the Front Surface of the Coupling Limiter to the Centerline of the Rear Drive Shaft: 1068 mm

Distance from the Center of the Intermediate Shaft Hole: 80.5 mm

Minimum Weight: 1850 kg

Standard Ballast (Front/Rear): -

Minimum Weight-to-Power Ratio (kg/kW): 41.95

Number of Gears (Forward/Reverse): 8+2 or 8+8

Number of Main Gears: 4+1

Number of Range Shifts: 2

Maximum Theoretical Design Speed (km/h): 31.6

Connection Mode Between Engine and Main Clutch: Direct Connection

Type of Rollover Protective Device: Cabin or Arch

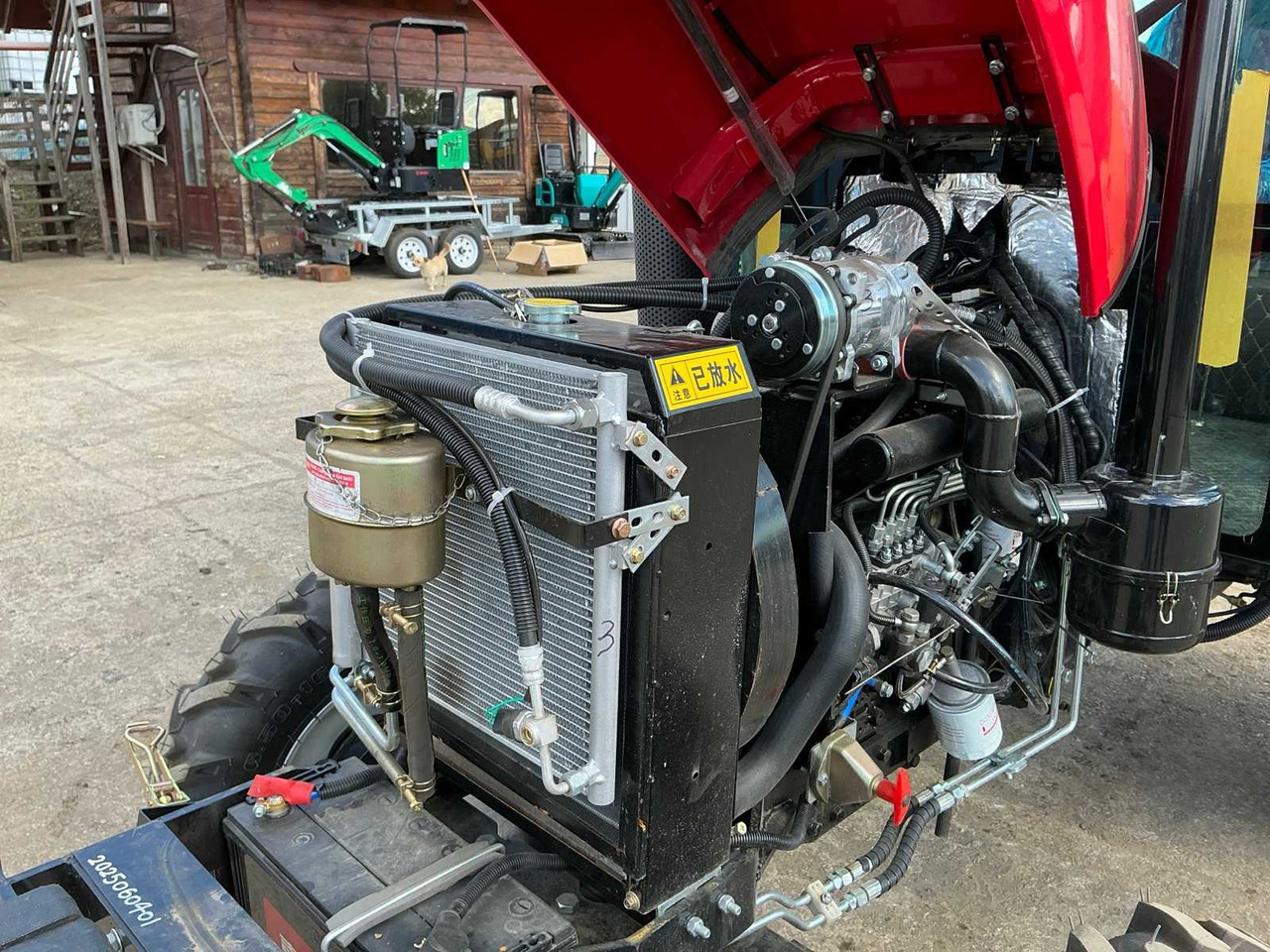

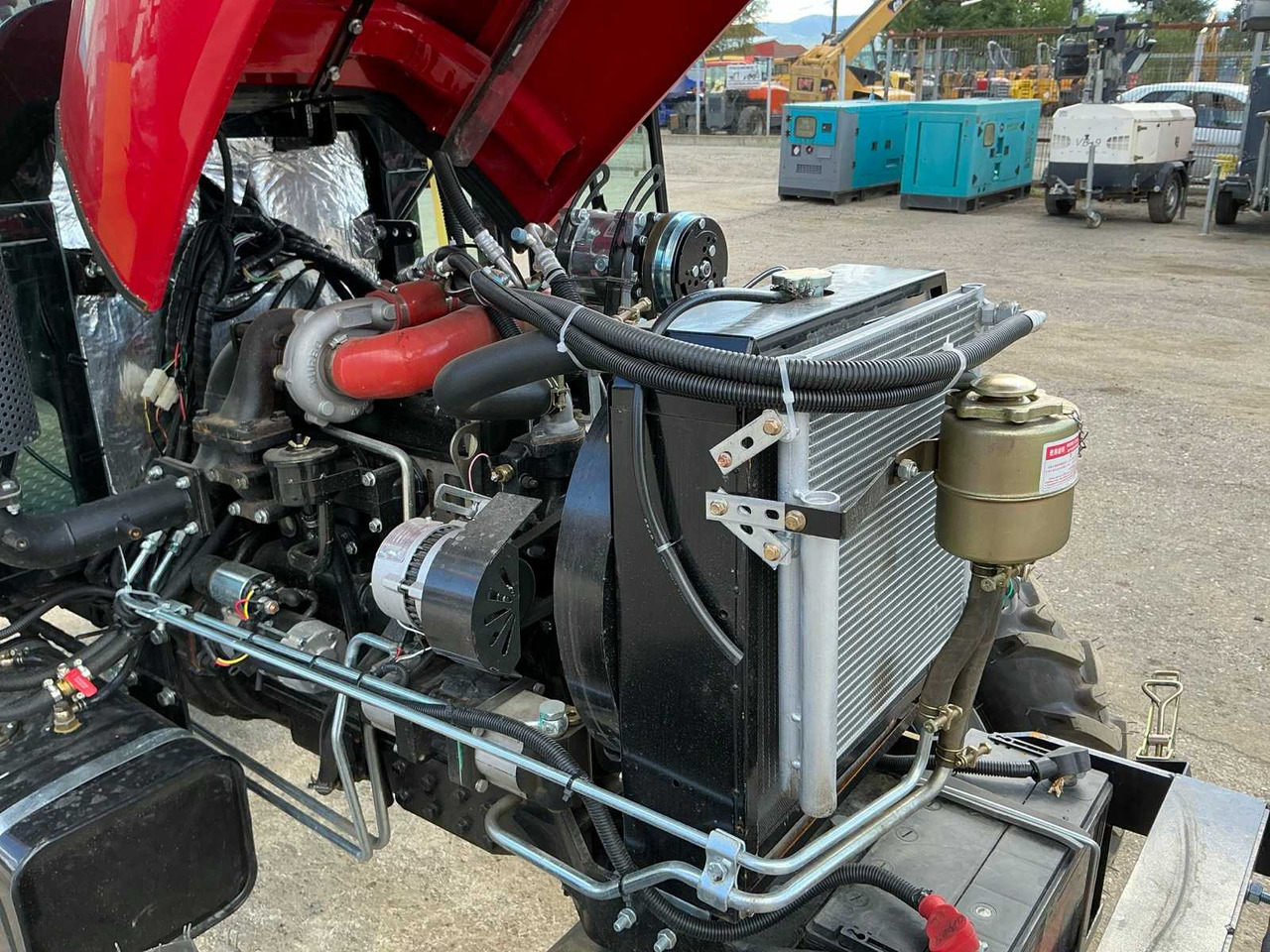

Engine

Engine Model: YN4H055-30VE

Engine Configuration: Inline, water-cooled, four-stroke

Engine Inlet Mode: Naturally Aspirated

Number of Engine Cylinders: 4

Rated Engine Power (kW): 44.1

Engine RPM: 2300

Engine Cooling Mode: Water Cooling

Air Filter Type: Dry

External Dimensions of the Exhaust Pipe Soundproofing Chamber (Length x Width x Thickness or Diameter x Length): φ110 x 400 mm

Weight of the Exhaust Pipe Soundproofing Chamber: 6 kg

Steering System

Steering System Type: Fully Hydraulic

Front Wheel Steering: Yes

Gear Shifting

Main Gear Shifting Mode: Mechanical Stepped

Auxiliary Gear Shifting Mode: Mechanical Stepped

Tires

Tire Model (Front/Rear): 6.50-16/11.2-24

Hydraulic System

Type of Hydraulic Suspension: Separate

Type of Suspension: Rear Three-point Suspension

Suspension Category: Category II

Number of Hydraulic Outlet Groups: 1

Safety Valve Opening Pressure for Working Equipment (MPa): 16±0.5

Power Take-Off

Number of Splines on the Power Take-Off Shaft: 6 or 8

Standard RPM of the Power Take-Off Shaft (RPM): 540/720
