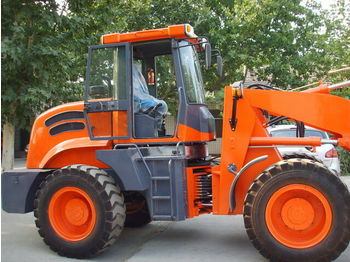

Zakup QINGDAO PROMISING 2.8T Capacity Compact Wheel Loader with CE ZL28F

2.8 ton Capacity automatic transmission wheel loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera, top beacon; and optional hydraulic joystick control, hydraulic quick attach and air conditioner

Compact Wheel Loader ZL28F

Technical Specifications:

1. Rated Load: 2800kg

2. Operating Weight: 6200kg

3. Rated Bucket Capacity: 1.4CBM

4. Bucket Width: 2150mm

5. Max. Breakout Force: 64KN

6. Max. Tilt Angle of Cabin: 30deg.

7. Max. Dumping Height: 3500mm

8. Max. Dumping Reach: 1300mm

9. Raising Time: less than 6.0s

10. Min. Ground Clearance: 380mm

11. Overall Dimensions (L x W x H): 6570x2200x2850mm

12. Min. Turning Radius: 4800mm

13. Engine Model: DONGFANGHONG YT4B2Z-24 Turbocharged Engine

14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

15. Rated Engine Power: 74.9kW

16. Rated Engine Speed: 2400rpm

17. Min. Fuel Consumption Rate: 210g/kW.h

18. Transmission Mode: ZL280 Hydraulic Torque Converter

19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

20. Max. Speed: 25km/h

21. Mode of Axle:ZL20 Hub Reduction Drive Axle

22. Wheel Tread: 1650mm

23. Wheel Base: 2600mm

24. Drive Mode: 4-wheel Drive

25. Hydraulic System Working Pressure: 20Mpa

26. Hydraulic System Working Pump Type: Gear Pump

27. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Disc Brake on 4 Wheels

28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

29. Tyre Type Specification: 16/70-24-16PR

30. Front Tyre Pressure: 0.40Mpa

31. Rear Tyre Pressure: 0.35Mpa

Note:

1. All photos are for reference only.

2. Machines shown may include optional parts.

3. All specifications and design characteristics are subject to change without prior notice.
