Novi Rudarski strojevi FABO Mining machinery - crushing plant

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

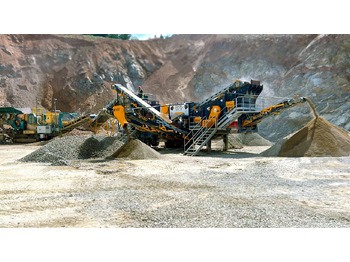

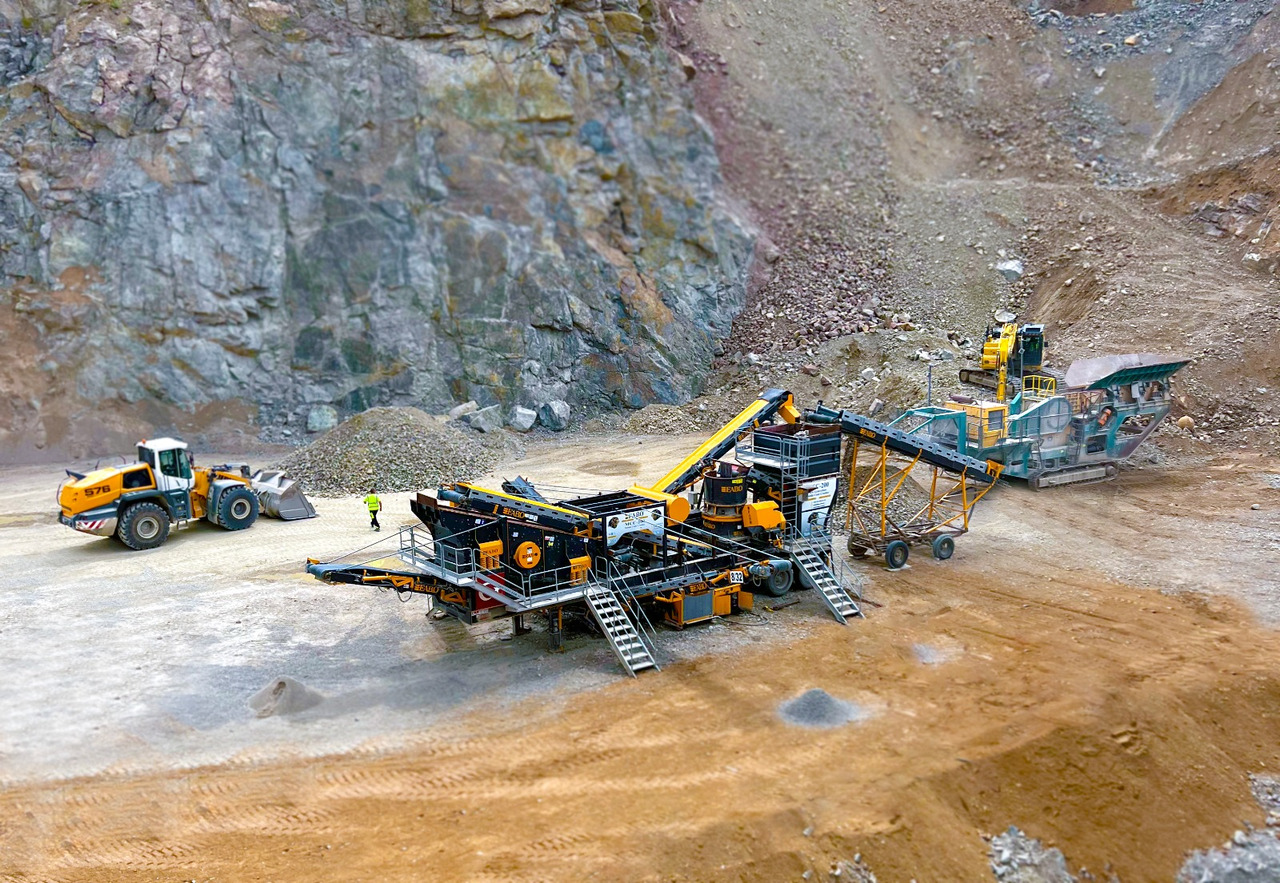

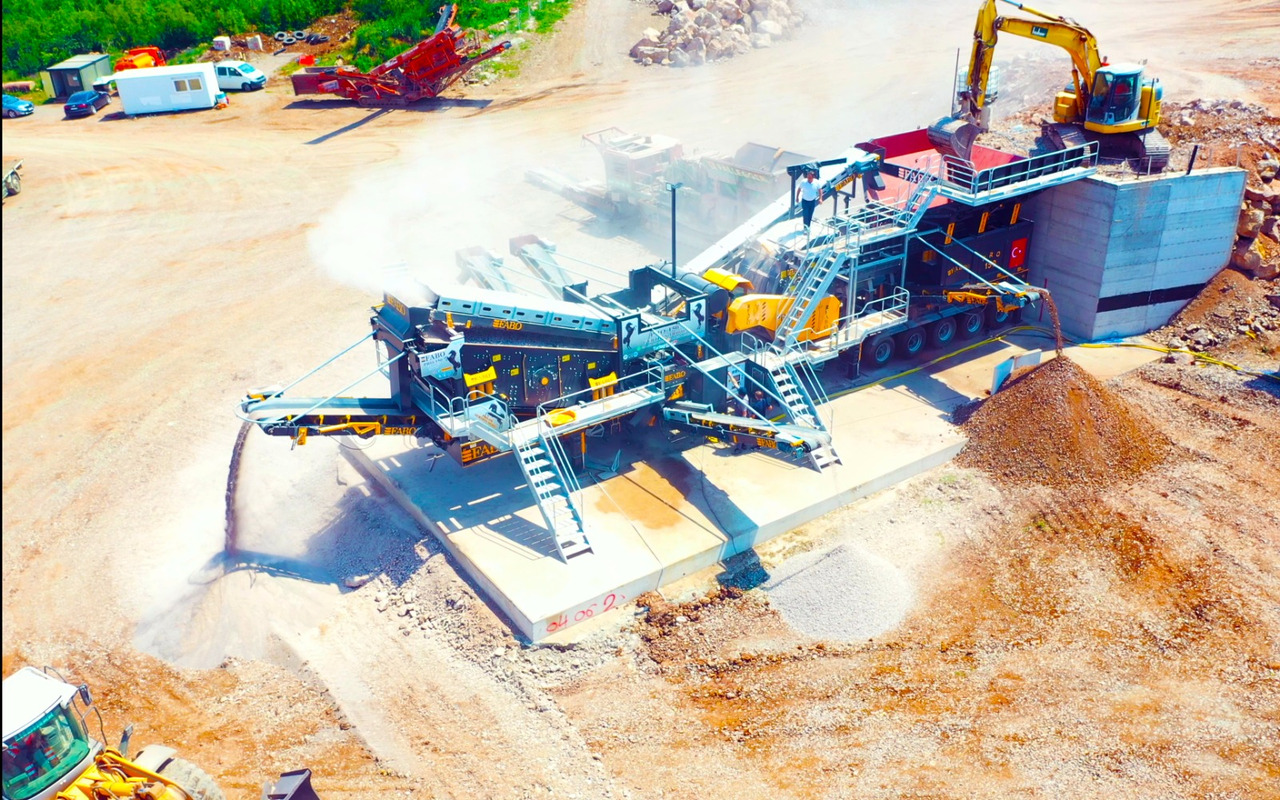

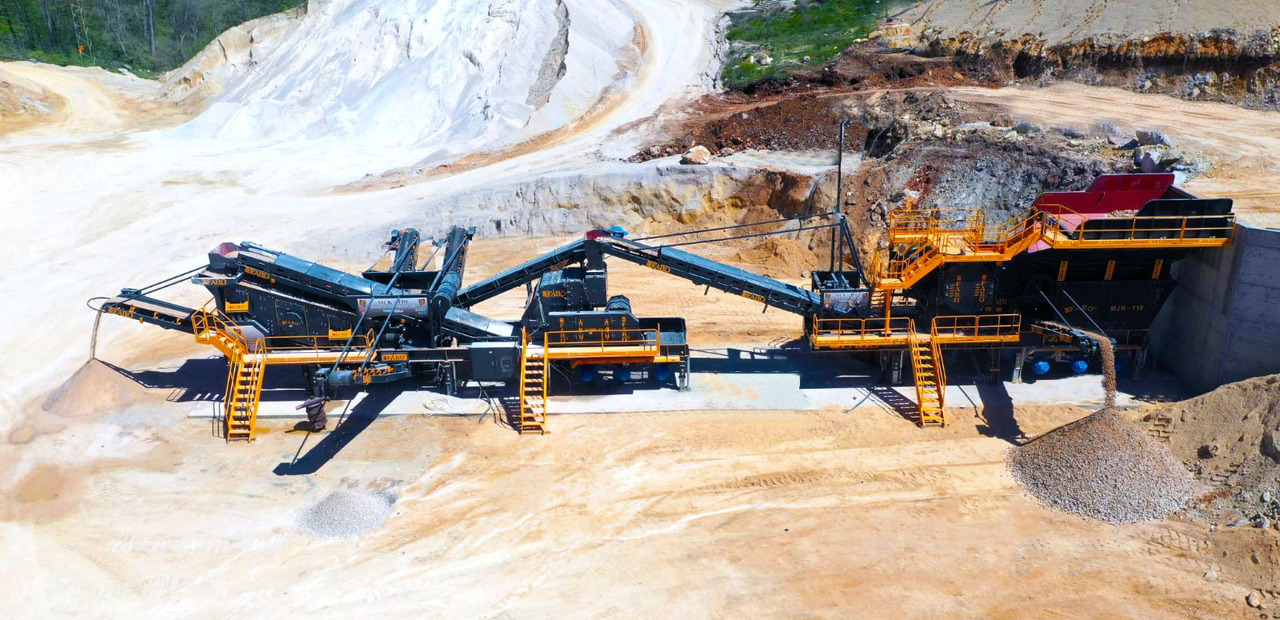

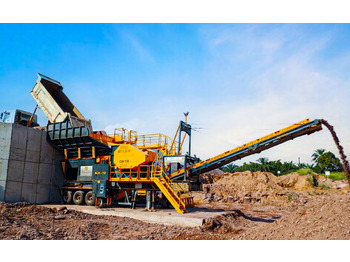

New Generation FULLSTAR Series Mobile Crushing, Screening and Washing Plants are the most preferred machines in recent years thanks to easy and cost free installation. The first crushing process is performed with Primery Jaw Crusher, we can design with secondary impact crusher or cone crusher for second crushing stage according to the requirements of our customers. Fullstar-60 plant has been projected for the first time in the world by Fabo and provides crushing, screening and as well as to wash 0-5 mm sand at the same time on a single chassis. Our FULLSTAR model operates in closed Crushing circuit system and allows user to obtain 4 different final fractions up to 300 T / S capacity. We are manufacturing Fullstar-90 and 110 models which has 3 functions at the same time by trailed-type 2 chassis with its own tires.

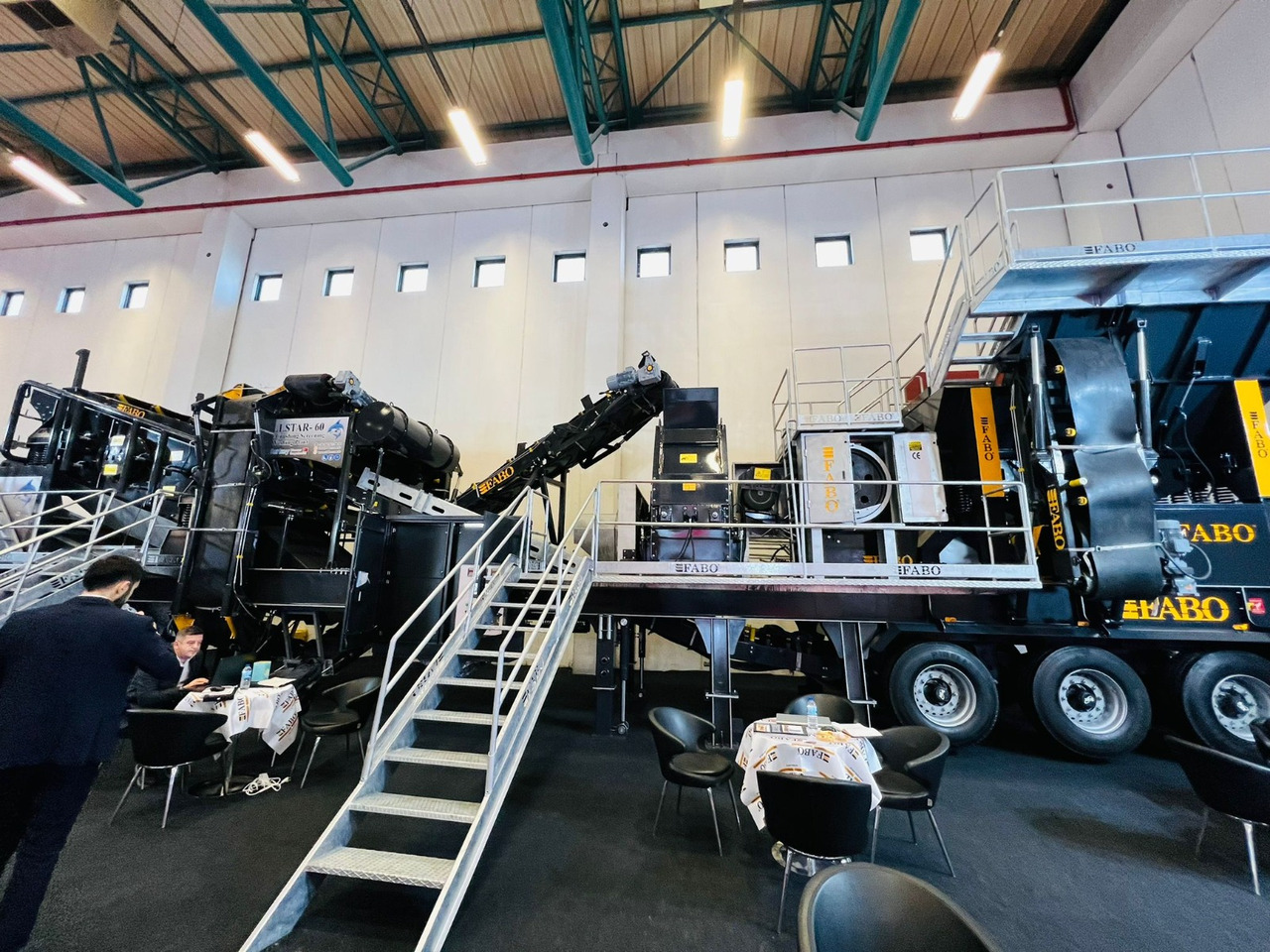

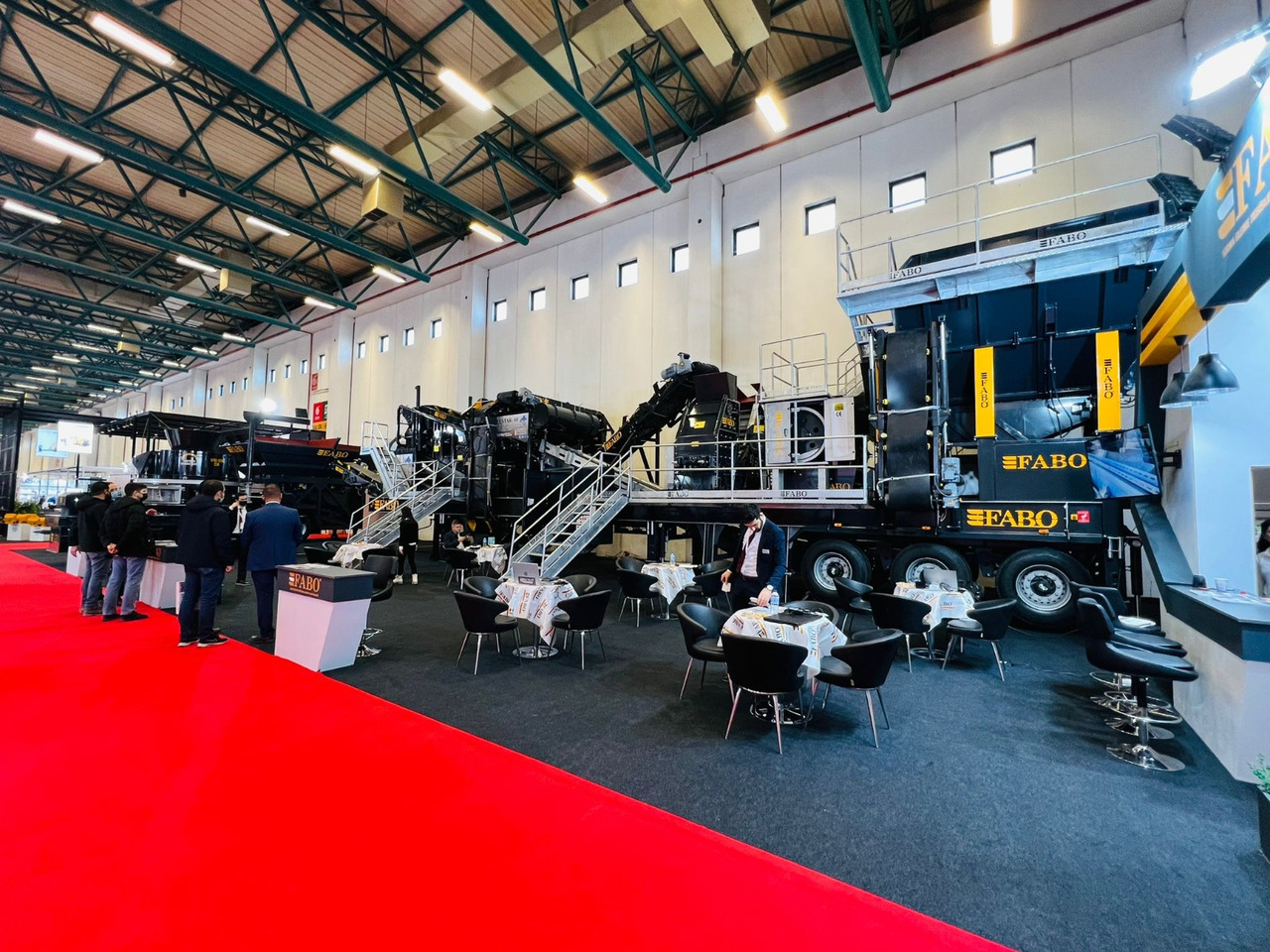

FABO FULLSTAR-90 is a mobile type plant which perform crushing, washing and screening operations at the same time. This type of plant is very efficient as it is produced on a single chassis, which reduces both plant operation area and manufacture cost.

TECHNICAL SPECIFICATIONS:

- Model: Fullstar-90

- Production Capacity: 120-180 Tons Per Hour

- 1st Crusher: Primary Jaw Crusher – 900x650mm

- 2nd Crusher: Secondary Impact Crusher – Rotor Ø1250x1000 mm

- Maximum Feeding Size: 600 mm

- Vibrating Screen Size and Deck: 1st Chassis: 1700x4500 mm

: 2nd Chassis: 1550x4000 mm(Grizzly)

¬- Screw Washer Size: 600x5000 mm (Twins Helix)

- Total Motor Power: 377 Kw

- Generator (optional): 450 kvA

- Plant Dimensions: 1st Chassis: 18960 x 4070 x 4650mm

: 2nd Chassis: 15500 x 4650 x 4400mm

FULLSTAR-90 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder(Bypass)

• Primary Jaw Crusher

• Secondary Impact Crusher

• High Stroke Type Vibrating Screen

• Screw Sand Washer (Single Helix)

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
