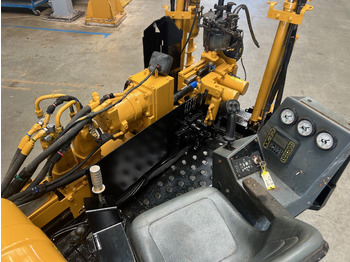

Direkcionalna bušilica VERMEER D9x13 Series II

Vermeer Navigator D9x13 Series II

Completely inspected and tested by authorized Vermeer technicians. We inspect, repair and test all relevant systems, such

as the engine, the electrical system, the hydraulic system, all mechanics and the overall functions and details, following the

official Vermeer guidelines while using only original Vermeer parts. All used equipment is delivered including detailed

inspection document. We are confident in the quality that we deliver to our customers.

Anything in need of repair will be taken care of at no additional charge!

- Construction year: 2012

- Hours: 2988

Dimensions:

- LxWxH: 380x91x176 cm

- Weight: 2860 kg

Operational:

- Max 1760 Nm torque

- Max 220 rpm

- Pull force: 4,1 ton

Drillrods Vermeer FireStick on the rig:

- Length: 1,8 meter

- Pipe diameter: 4,2 cm

- Weight: 11,3 kg

- Minimum radius: 29 meter

- Box filled with 40 used drill rods.

72 meters total length included with machine

Standard available on the machine:

- Rack & pinion system for the rotation gearbox

- Automatic rod loading system

- Rubber tracks

- Automatic anchoring system

- Lighting

- Rod greasing system

Engine:

- Type Kubota V1505 turbodiesel Tier 3

- 47 hp @ 3000 rpm

High pressure bentonite pump:

- max 57 liter per minute

- max pressure 52 bar

Greasing system drill rods:

- Automatic greasing system for drill rods

Miscellaneous:

- Fuel tank: 53 liter

- Hydraulic reservoir: 65 liter
